Snow Guard Systems
SCM-2TUBE
Two-Tube Snow Guards
A two-tube snow-retention support designed for a single row along the edge of a metal roof.
- Height
- 6.66 in (6 2/3 in)
- Base length
- 8.45 in (8 7/16 in)
- Tube openings
- 1 1/16 in diameter
- Base thickness
- 15/32 in
Installation Guide
Roof preparation, fastening and placement
Required surface
Continuous support beneath the metal roofing, using wooden beams at least 1 1/2 inches thick or doubled rows of furring strips where the guards will be fastened.
Fastening
- Cover the entire back of the snow guard base with a non-shrinking sealant, such as ADSEAL4550 by ADFAST or SUPPRA EXPERT by MULCO.
- Fasten the snow guards in the middle of the roof panels using 2-inch #14 (#12) wood screws.

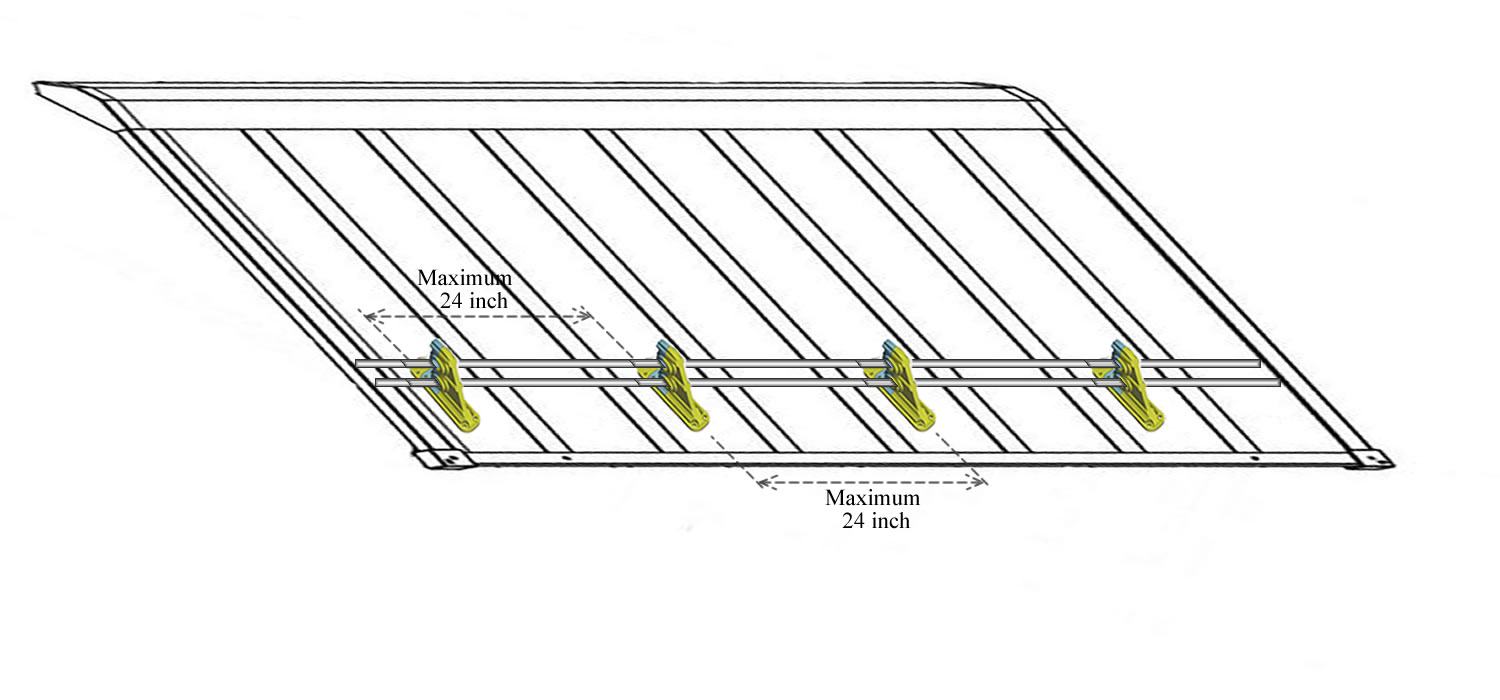

Placement recommendations
- Install the two-tube snow guards in one row along the roof edge, starting approximately 10 inches from the edge.
- Keep the maximum spacing between supports to 24 inches.
- The building owner is responsible for removing excess snow.
