TBG-314
Quick clamping lever with seat post
Quick clamping lever with an aluminium collar for common seat-post diameters.
- Material
- Aluminium alloy
- Stud bolt
- Steel, zinc plated
- Collar
- Aluminium alloy
- Color
- Silver standard; black, red, blue, white, yellow, and customized colors available
Technical Data

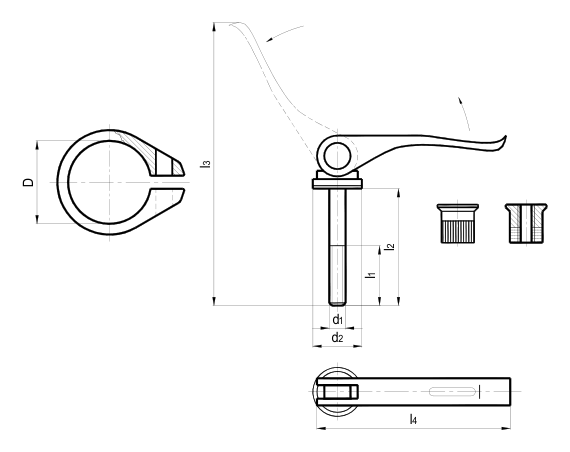

Dimensions and ordering information
| Item no. | d1 | d2 | l1 | l2 | l3 | l4 | D |
|---|---|---|---|---|---|---|---|
| TBG314-M6-71-25.4 | M6 | 18 | 22 | 43 | 104 | 71 | 25.4 |
| TBG314-M6-71-28.6 | M6 | 18 | 22 | 43 | 104 | 71 | 28.6 |
| TBG314-M6-71-31.8 | M6 | 18 | 22 | 43 | 104 | 71 | 31.8 |
| TBG314-M6-71-34.9 | M6 | 18 | 22 | 43 | 104 | 71 | 34.9 |
