Operation Elements
TBG-313
Quick clamping lever
Compact quick clamping lever with an aluminium handle and zinc-plated steel stud bolt.
- Material
- Aluminium
- Stud bolt
- Steel, zinc plated
- Color
- Silver standard; black, red, blue, white, yellow, and customized colors available
Technical Data

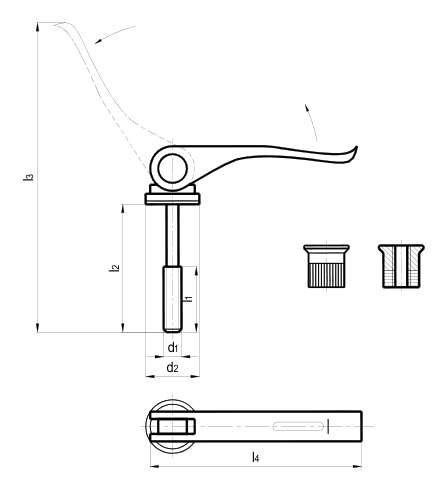

Dimensions and ordering information
| Item no. | d1 | d2 | l1 | l2 | l3 | l4 |
|---|---|---|---|---|---|---|
| TBG313-M6-71 | M6 | 18 | 22 | 43 | 104 | 71 |
