Operation Elements
TBG-312
U-Bridge handles
Long aluminium U-bridge handles with threaded blind bores.
- Bore
- Threaded blind bore
- Material
- Aluminium
- Coating
- Plastic coated
- Color
- Black standard; red, white, and customized colors available
Technical Data

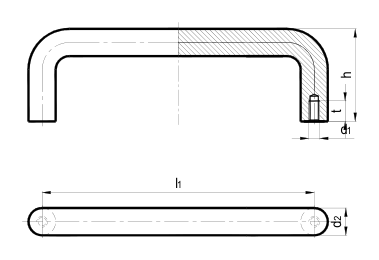

Dimensions and ordering information
| Item no. | d1 | d2 | t | h | l1 |
|---|---|---|---|---|---|
| TBG312-M8-200 | M8 | 20 | 15 | 68 | 200 |
| TBG312-M8-250 | M8 | 20 | 15 | 68 | 250 |
| TBG312-M8-300 | M8 | 20 | 15 | 68 | 300 |
| TBG312-M10-250 | M10 | 28 | 15 | 78 | 250 |
| TBG312-M10-300 | M10 | 28 | 15 | 78 | 300 |
| TBG312-M10-350 | M10 | 28 | 15 | 78 | 350 |
