Operation Elements
TBG-311
U-Bridge handles
Aluminium U-bridge handles with through bores and a durable plastic coating.
- Bore
- Through bore
- Material
- Aluminium
- Coating
- Plastic coated
- Color
- Black standard; red, white, and customized colors available
Technical Data

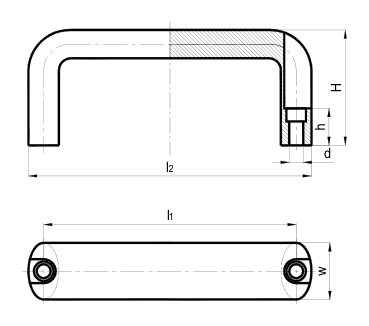

Dimensions and ordering information
| Item no. | d | h | H | w | l1 | l2 |
|---|---|---|---|---|---|---|
| TBG311-116-6.4 | 6.4 | 17 | 53 | 26 | 116 | 130 |
| TBG311-132-6.4 | 6.4 | 17 | 55 | 26 | 132 | 146 |
| TBG311-164-6.4 | 6.4 | 17 | 57 | 26 | 164 | 178 |
| TBG311-196-6.4 | 6.4 | 17 | 57 | 26 | 196 | 210 |
