Operation Elements
TBG-310
U-Bridge handles
Aluminium U-bridge handles with threaded blind bores for machine operation points.
- Material
- Aluminium
- Coating
- Plastic coated
- Color
- Black standard; red, white, and customized colors available
Technical Data

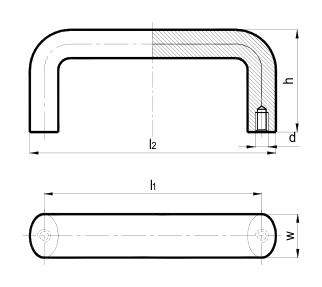

Dimensions and ordering information
| Item no. | d | h | w | l1 | l2 |
|---|---|---|---|---|---|
| TBG310-100-M6 | M6 | 47 | 20 | 100 | 113 |
| TBG310-112-M8 | M8 | 53 | 26 | 112 | 129 |
| TBG310-128-M6 | M6 | 51 | 20 | 128 | 141 |
| TBG310-160-M8 | M8 | 57 | 26 | 160 | 177 |
| TBG310-192-M8 | M8 | 57 | 26 | 192 | 209 |
