DIN 950
Spoked handwheels without handle
Polished AISI 316 stainless steel handwheels supplied without a handle.
- Material
- Stainless steel precision AISI 316, wheel rim turned and polished
- Type B
- Without keyway
- Type K
- With keyway
Technical Data
Dimensions and ordering information

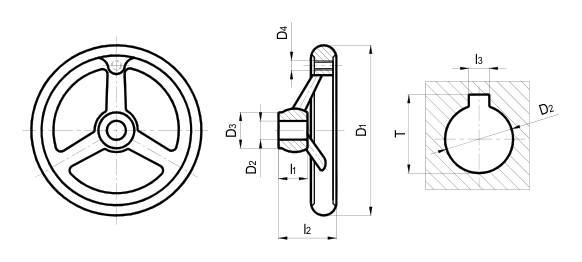

| Item no. | D1 | D2 | D3 | D4 | l1 | l2 | l3 | T |
|---|---|---|---|---|---|---|---|---|
| DIN950-100-10-B | 100 | 10 | 26 | M6 | 17 | 33 | - | - |
| DIN950-125-12-B | 125 | 12 | 28 | M8 | 18 | 36 | - | - |
| DIN950-160-16-B | 160 | 16 | 32 | M10 | 20 | 40 | - | - |
| DIN950-200-18-B | 200 | 18 | 38 | M10 | 24 | 45 | - | - |
| DIN950-100-10-K | 100 | 10 | 26 | M6 | 17 | 33 | 3 | 11.4 |
| DIN950-125-12-K | 125 | 12 | 28 | M8 | 18 | 36 | 4 | 13.8 |
| DIN950-160-16-K | 160 | 16 | 32 | M10 | 20 | 40 | 5 | 18.3 |
| DIN950-200-18-K | 200 | 18 | 38 | M10 | 24 | 45 | 6 | 20.8 |
