DIN 6336
Hand knobs

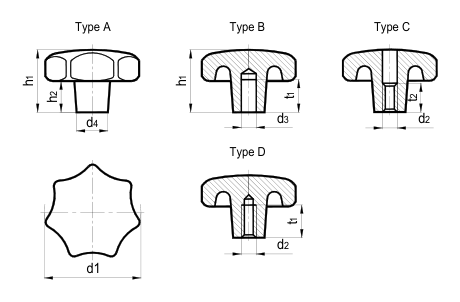

Aluminium hand knobs in four bore configurations for control and adjustment points.
- Material
- Aluminium
- Form A
- Without bore
- Form B
- With plain blind bore
- Form C
- With threaded through bore
- Form D
- With threaded blind bore
Technical Data
Dimensions and ordering information
| Item no. | d1 | d2 | d3 | d4 | h1 | h2 | t1 | t2 |
|---|---|---|---|---|---|---|---|---|
| DIN6336-AL-63-A | 63 | - | - | 20 | 42 | 19 | - | - |
| DIN6336-AL-80-A | 80 | - | - | 25 | 52 | 23 | - | - |
| DIN6336-AL-63-B | 63 | - | 10 | 20 | 40 | 19 | 22 | - |
| DIN6336-AL-80-B | 80 | - | 12 | 25 | 50 | 23 | 28 | - |
| DIN6336-AL-63-M10-C | 63 | M10 | - | 20 | 40 | 19 | - | 20 |
| DIN6336-AL-80-M12-C | 80 | M12 | - | 25 | 50 | 23 | - | 30 |
| DIN6336-AL-63-M10-D | 63 | M10 | - | 20 | 40 | 19 | 22 | - |
| DIN6336-AL-80-M12-D | 80 | M12 | - | 25 | 50 | 23 | 28 | - |
