DIN 444
Swing bolts
Precision Type B swing bolts for jigs, fixtures, and repeated clamping operations.
- Type ST
- Steel, blackened
- Type SS
- Stainless steel AISI 304
Technical Data
Dimensions and ordering information

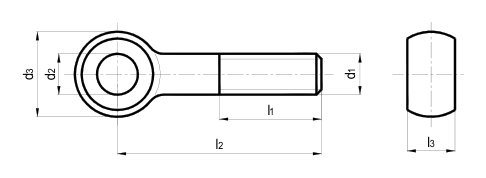

| Item no. | d1 | d2 | d3 | l1 | l2 | l3 |
|---|---|---|---|---|---|---|
| DIN444-M5-25-* | M5 | 5 | 12 | 16 | 25 | 6 |
| DIN444-M5-30-* | M5 | 5 | 12 | 16 | 30 | 6 |
| DIN444-M5-35-* | M5 | 5 | 12 | 16 | 35 | 6 |
| DIN444-M5-40-* | M5 | 5 | 12 | 16 | 40 | 6 |
| DIN444-M6-30-* | M6 | 6 | 14 | 18 | 30 | 7 |
| DIN444-M6-40-* | M6 | 6 | 14 | 18 | 40 | 7 |
| DIN444-M6-50-* | M6 | 6 | 14 | 18 | 50 | 7 |
| DIN444-M6-60-* | M6 | 6 | 14 | 18 | 60 | 7 |
| DIN444-M6-80-* | M6 | 6 | 14 | 18 | 80 | 7 |
| DIN444-M8-40-* | M8 | 8 | 18 | 22 | 40 | 9 |
| DIN444-M8-50-* | M8 | 8 | 18 | 22 | 50 | 9 |
| DIN444-M8-60-* | M8 | 8 | 18 | 22 | 60 | 9 |
| DIN444-M8-80-* | M8 | 8 | 18 | 22 | 80 | 9 |
| DIN444-M8-100-* | M8 | 8 | 18 | 22 | 100 | 9 |
| DIN444-M10-50-* | M10 | 10 | 20 | 26 | 50 | 12 |
| DIN444-M10-60-* | M10 | 10 | 20 | 26 | 60 | 12 |
| DIN444-M10-75-* | M10 | 10 | 20 | 26 | 75 | 12 |
| DIN444-M10-100-* | M10 | 10 | 20 | 26 | 100 | 12 |
| DIN444-M10-120-* | M10 | 10 | 20 | 26 | 120 | 12 |
| DIN444-M12-50-* | M12 | 12 | 25 | 30 | 50 | 14 |
| DIN444-M12-60-* | M12 | 12 | 25 | 30 | 60 | 14 |
| DIN444-M12-80-* | M12 | 12 | 25 | 30 | 80 | 14 |
| DIN444-M12-100-* | M12 | 12 | 25 | 30 | 100 | 14 |
| DIN444-M12-120-* | M12 | 12 | 25 | 30 | 120 | 14 |
| DIN444-M16-60-* | M16 | 16 | 32 | 38 | 60 | 17 |
| DIN444-M16-80-* | M16 | 16 | 32 | 38 | 80 | 17 |
| DIN444-M16-100-* | M16 | 16 | 32 | 38 | 100 | 17 |
| DIN444-M16-120-* | M16 | 16 | 32 | 38 | 120 | 17 |
| DIN444-M16-150-* | M16 | 16 | 32 | 38 | 150 | 17 |
| DIN444-M20-100-* | M20 | 18 | 40 | 46 | 100 | 22 |
| DIN444-M20-120-* | M20 | 18 | 40 | 46 | 120 | 22 |
| DIN444-M20-160-* | M20 | 18 | 40 | 52 | 160 | 22 |
| DIN444-M20-200-* | M20 | 18 | 40 | 52 | 200 | 22 |
| DIN444-M24-100-* | M24 | 22 | 45 | 54 | 100 | 25 |
| DIN444-M24-120-* | M24 | 22 | 45 | 54 | 120 | 25 |
| DIN444-M24-160-* | M24 | 22 | 45 | 60 | 160 | 25 |
| DIN444-M24-200-* | M24 | 22 | 45 | 60 | 200 | 25 |
