Magnets
TBG-515
Precast concrete magnets
Recessed NdFeB magnets for precast concrete accessories and threaded connections.
- Shell
- Steel, zinc plated
- Magnet
- NdFeB magnet, nickel plated
Technical Data

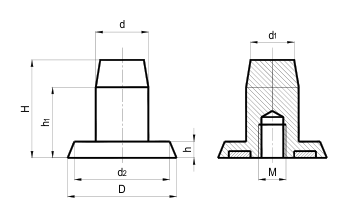

Dimensions and ordering information
| Item no. | D | H | d | d1 | d2 | h | h1 | M | Weight (g) | Attractive force (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| TBG515-40-18.1 | 40 | 36 | 18.1 | 16 | 35 | 6 | 26 | M10 | 100 | 30 |
| TBG515-40-19.3 | 40 | 36 | 19.3 | 16 | 35 | 6 | 26 | M10 | 105 | 30 |
