Magnets
TBG-514
Precast concrete magnets
Threaded NdFeB magnets designed for precast concrete fixtures and formwork.
- Shell
- Steel, zinc plated
- Magnet
- NdFeB magnet, nickel plated
Technical Data

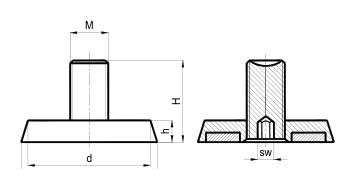

Dimensions and ordering information
| Item no. | D | H | M | d | h | SW | Weight (g) | Attractive force (kg) |
|---|---|---|---|---|---|---|---|---|
| TBG514-50-M10 | 50 | 30 | M10 | 45 | 8 | 5 | 130 | 60 |
| TBG514-50-M12 | 50 | 30 | M12 | 45 | 8 | 6 | 130 | 60 |
| TBG514-50-M14 | 50 | 30 | M14 | 45 | 8 | 6 | 135 | 60 |
| TBG514-50-M16 | 50 | 30 | M16 | 45 | 8 | 8 | 135 | 60 |
| TBG514-54-M18 | 54 | 30 | M18 | 49 | 10 | 10 | 165 | 60 |
| TBG514-54-M20 | 54 | 30 | M20 | 49 | 10 | 10 | 165 | 60 |
| TBG514-54-M24 | 54 | 30 | M24 | 49 | 10 | 12 | 170 | 60 |
