Leveling Feet

TBG-419

Name: TBG-419 Fixed leveling feet
Brand: STEELYNC
SKU: TBG-419

Fixed leveling feet

Low-profile fixed leveling feet with nickel-plated or stainless steel construction.

Technical Data

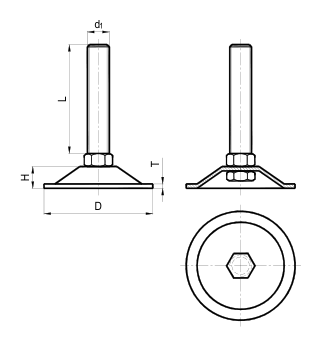

Dimensions and ordering information

TBG-419 specifications
Item no.	D	H	T	d1	L
TBG419-50-M10-50-*	50	10	2	M10	50
TBG419-50-M10-100-*	50	10	2	M10	100
TBG419-50-M10-150-*	50	10	2	M10	150
TBG419-50-M12-50-*	50	10	2	M12	50
TBG419-50-M12-100-*	50	10	2	M12	100
TBG419-50-M12-150-*	50	10	2	M12	150
TBG419-50-M16-50-*	50	10	2	M16	50
TBG419-50-M16-100-*	50	10	2	M16	100
TBG419-50-M16-150-*	50	10	2	M16	150
TBG419-60-M10-50-*	60	14	2	M10	50
TBG419-60-M10-100-*	60	14	2	M10	100
TBG419-60-M10-150-*	60	14	2	M10	150
TBG419-60-M12-50-*	60	14	2	M12	50
TBG419-60-M12-100-*	60	14	2	M12	100
TBG419-60-M12-150-*	60	14	2	M12	150
TBG419-60-M16-50-*	60	14	2	M16	50
TBG419-60-M16-100-*	60	14	2	M16	100
TBG419-60-M16-150-*	60	14	2	M16	150
TBG419-60-M20-50-*	60	14	2	M20	50
TBG419-60-M20-100-*	60	14	2	M20	100
TBG419-60-M20-150-*	60	14	2	M20	150
TBG419-80-M12-50-*	80	14	2	M12	50
TBG419-80-M12-100-*	80	14	2	M12	100
TBG419-80-M12-150-*	80	14	2	M12	150
TBG419-80-M16-50-*	80	14	2	M16	50
TBG419-80-M16-100-*	80	14	2	M16	100
TBG419-80-M16-150-*	80	14	2	M16	150
TBG419-80-M20-50-*	80	14	2	M20	50
TBG419-80-M20-100-*	80	14	2	M20	100
TBG419-80-M20-150-*	80	14	2	M20	150
TBG419-80-M24-50-*	80	14	2	M24	50
TBG419-80-M24-100-*	80	14	2	M24	100
TBG419-80-M24-150-*	80	14	2	M24	150
TBG419-100-M12-50-*	100	14	3	M12	50
TBG419-100-M12-100-*	100	14	3	M12	100
TBG419-100-M12-150-*	100	14	3	M12	150
TBG419-100-M16-50-*	100	14	3	M16	50
TBG419-100-M16-100-*	100	14	3	M16	100
TBG419-100-M16-150-*	100	14	3	M16	150
TBG419-100-M20-50-*	100	14	3	M20	50
TBG419-100-M20-100-*	100	14	3	M20	100
TBG419-100-M20-150-*	100	14	3	M20	150
TBG419-100-M24-50-*	100	14	3	M24	50
TBG419-100-M24-100-*	100	14	3	M24	100
TBG419-100-M24-150-*	100	14	3	M24	150
