Leveling Feet
TBG-415
Swivel leveling feet
All-steel swivel leveling feet with a solid machined base.
- Material
- Steel
- Thread stem
- Machined steel hexagonal bar
- Base
- Solid steel cylinder, lathe processed
Technical Data

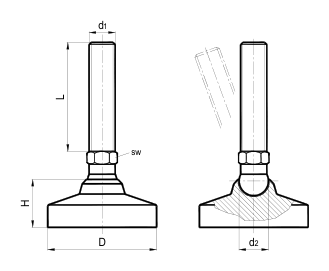

Dimensions and ordering information
| Item no. | D | H | d1 | d2 | L | SW |
|---|---|---|---|---|---|---|
| TBG415-50-M12-50 | 50 | 22 | M12 | 13.5 | 50 | 14 |
| TBG415-50-M12-80 | 50 | 22 | M12 | 13.5 | 80 | 14 |
| TBG415-50-M12-100 | 50 | 22 | M12 | 13.5 | 100 | 14 |
| TBG415-50-M12-125 | 50 | 22 | M12 | 13.5 | 125 | 14 |
| TBG415-50-M12-150 | 50 | 22 | M12 | 13.5 | 150 | 14 |
| TBG415-50-M14-50 | 50 | 22 | M14 | 13.5 | 50 | 17 |
| TBG415-50-M14-80 | 50 | 22 | M14 | 13.5 | 80 | 17 |
| TBG415-50-M14-100 | 50 | 22 | M14 | 13.5 | 100 | 17 |
| TBG415-50-M14-125 | 50 | 22 | M14 | 13.5 | 125 | 17 |
| TBG415-50-M14-150 | 50 | 22 | M14 | 13.5 | 150 | 17 |
| TBG415-50-M16-50 | 50 | 22 | M16 | 13.5 | 50 | 17 |
| TBG415-50-M16-80 | 50 | 22 | M16 | 13.5 | 80 | 17 |
| TBG415-50-M16-100 | 50 | 22 | M16 | 13.5 | 100 | 17 |
| TBG415-50-M16-125 | 50 | 22 | M16 | 13.5 | 125 | 17 |
| TBG415-50-M16-150 | 50 | 22 | M16 | 13.5 | 150 | 17 |
| TBG415-50-M20-50 | 50 | 22 | M20 | 15.3 | 50 | 22 |
| TBG415-50-M20-80 | 50 | 22 | M20 | 15.3 | 80 | 22 |
| TBG415-50-M20-100 | 50 | 22 | M20 | 15.3 | 100 | 22 |
| TBG415-50-M20-125 | 50 | 22 | M20 | 15.3 | 125 | 22 |
| TBG415-50-M20-150 | 50 | 22 | M20 | 15.3 | 150 | 22 |
| TBG415-50-M24-50 | 50 | 22 | M24 | 15.3 | 50 | 24 |
| TBG415-50-M24-80 | 50 | 22 | M24 | 15.3 | 80 | 24 |
| TBG415-50-M24-100 | 50 | 22 | M24 | 15.3 | 100 | 24 |
| TBG415-50-M24-125 | 50 | 22 | M24 | 15.3 | 125 | 24 |
| TBG415-50-M24-150 | 50 | 22 | M24 | 15.3 | 150 | 24 |
| TBG415-60-M12-50 | 60 | 24 | M12 | 15.3 | 50 | 17 |
| TBG415-60-M12-80 | 60 | 24 | M12 | 15.3 | 80 | 17 |
| TBG415-60-M12-100 | 60 | 24 | M12 | 15.3 | 100 | 17 |
| TBG415-60-M12-125 | 60 | 24 | M12 | 15.3 | 125 | 17 |
| TBG415-60-M12-150 | 60 | 24 | M12 | 15.3 | 150 | 17 |
| TBG415-60-M14-50 | 60 | 24 | M14 | 15.3 | 50 | 17 |
| TBG415-60-M14-80 | 60 | 24 | M14 | 15.3 | 80 | 17 |
| TBG415-60-M14-100 | 60 | 24 | M14 | 15.3 | 100 | 17 |
| TBG415-60-M14-125 | 60 | 24 | M14 | 15.3 | 125 | 17 |
| TBG415-60-M14-150 | 60 | 24 | M14 | 15.3 | 150 | 17 |
| TBG415-60-M16-50 | 60 | 24 | M16 | 21.5 | 50 | 22 |
| TBG415-60-M16-80 | 60 | 24 | M16 | 21.5 | 80 | 22 |
| TBG415-60-M16-100 | 60 | 24 | M16 | 21.5 | 100 | 22 |
| TBG415-60-M16-125 | 60 | 24 | M16 | 21.5 | 125 | 22 |
| TBG415-60-M16-150 | 60 | 24 | M16 | 21.5 | 150 | 22 |
| TBG415-60-M20-50 | 60 | 24 | M20 | 21.5 | 50 | 22 |
| TBG415-60-M20-80 | 60 | 24 | M20 | 21.5 | 80 | 22 |
| TBG415-60-M20-100 | 60 | 24 | M20 | 21.5 | 100 | 22 |
| TBG415-60-M20-125 | 60 | 24 | M20 | 21.5 | 125 | 22 |
| TBG415-60-M20-150 | 60 | 24 | M20 | 21.5 | 150 | 22 |
| TBG415-60-M24-50 | 60 | 24 | M24 | 21.5 | 50 | 24 |
| TBG415-60-M24-80 | 60 | 24 | M24 | 21.5 | 80 | 24 |
| TBG415-60-M24-100 | 60 | 24 | M24 | 21.5 | 100 | 24 |
| TBG415-60-M24-125 | 60 | 24 | M24 | 21.5 | 125 | 24 |
| TBG415-60-M24-150 | 60 | 24 | M24 | 21.5 | 150 | 24 |
| TBG415-80-M16-50 | 80 | 26 | M16 | 21.5 | 50 | 22 |
| TBG415-80-M16-80 | 80 | 26 | M16 | 21.5 | 80 | 22 |
| TBG415-80-M16-100 | 80 | 26 | M16 | 21.5 | 100 | 22 |
| TBG415-80-M16-125 | 80 | 26 | M16 | 21.5 | 125 | 22 |
| TBG415-80-M16-150 | 80 | 26 | M16 | 21.5 | 150 | 22 |
| TBG415-80-M20-50 | 80 | 26 | M20 | 21.5 | 50 | 22 |
| TBG415-80-M20-80 | 80 | 26 | M20 | 21.5 | 80 | 22 |
| TBG415-80-M20-100 | 80 | 26 | M20 | 21.5 | 100 | 22 |
| TBG415-80-M20-125 | 80 | 26 | M20 | 21.5 | 125 | 22 |
| TBG415-80-M20-150 | 80 | 26 | M20 | 21.5 | 150 | 22 |
| TBG415-80-M24-50 | 80 | 26 | M24 | 21.5 | 50 | 24 |
| TBG415-80-M24-80 | 80 | 26 | M24 | 21.5 | 80 | 24 |
| TBG415-80-M24-100 | 80 | 26 | M24 | 21.5 | 100 | 24 |
| TBG415-80-M24-125 | 80 | 26 | M24 | 21.5 | 125 | 24 |
| TBG415-80-M24-150 | 80 | 26 | M24 | 21.5 | 150 | 24 |
| TBG415-100-M16-50 | 100 | 28 | M16 | 21.5 | 50 | 22 |
| TBG415-100-M16-80 | 100 | 28 | M16 | 21.5 | 80 | 22 |
| TBG415-100-M16-100 | 100 | 28 | M16 | 21.5 | 100 | 22 |
| TBG415-100-M16-125 | 100 | 28 | M16 | 21.5 | 125 | 22 |
| TBG415-100-M16-150 | 100 | 28 | M16 | 21.5 | 150 | 22 |
| TBG415-100-M20-50 | 100 | 28 | M20 | 21.5 | 50 | 22 |
| TBG415-100-M20-80 | 100 | 28 | M20 | 21.5 | 80 | 22 |
| TBG415-100-M20-100 | 100 | 28 | M20 | 21.5 | 100 | 22 |
| TBG415-100-M20-125 | 100 | 28 | M20 | 21.5 | 125 | 22 |
| TBG415-100-M20-150 | 100 | 28 | M20 | 21.5 | 150 | 22 |
| TBG415-100-M24-50 | 100 | 28 | M24 | 21.5 | 50 | 24 |
| TBG415-100-M24-80 | 100 | 28 | M24 | 21.5 | 80 | 24 |
| TBG415-100-M24-100 | 100 | 28 | M24 | 21.5 | 100 | 24 |
| TBG415-100-M24-125 | 100 | 28 | M24 | 21.5 | 125 | 24 |
| TBG415-100-M24-150 | 100 | 28 | M24 | 21.5 | 150 | 24 |
| TBG415-100-M30-50 | 100 | 28 | M30 | 26 | 50 | 30 |
| TBG415-100-M30-80 | 100 | 28 | M30 | 26 | 80 | 30 |
| TBG415-100-M30-100 | 100 | 28 | M30 | 26 | 100 | 30 |
| TBG415-100-M30-125 | 100 | 28 | M30 | 26 | 125 | 30 |
| TBG415-100-M30-150 | 100 | 28 | M30 | 26 | 150 | 30 |
| TBG415-120-M16-50 | 120 | 28 | M16 | 21.5 | 50 | 22 |
| TBG415-120-M16-80 | 120 | 28 | M16 | 21.5 | 80 | 22 |
| TBG415-120-M16-100 | 120 | 28 | M16 | 21.5 | 100 | 22 |
| TBG415-120-M16-125 | 120 | 28 | M16 | 21.5 | 125 | 22 |
| TBG415-120-M16-150 | 120 | 28 | M16 | 21.5 | 150 | 22 |
| TBG415-120-M20-50 | 120 | 28 | M20 | 21.5 | 50 | 22 |
| TBG415-120-M20-80 | 120 | 28 | M20 | 21.5 | 80 | 22 |
| TBG415-120-M20-100 | 120 | 28 | M20 | 21.5 | 100 | 22 |
| TBG415-120-M20-125 | 120 | 28 | M20 | 21.5 | 125 | 22 |
| TBG415-120-M20-150 | 120 | 28 | M20 | 21.5 | 150 | 22 |
| TBG415-120-M24-50 | 120 | 28 | M24 | 23.5 | 50 | 24 |
| TBG415-120-M24-80 | 120 | 28 | M24 | 23.5 | 80 | 24 |
| TBG415-120-M24-100 | 120 | 28 | M24 | 23.5 | 100 | 24 |
| TBG415-120-M24-125 | 120 | 28 | M24 | 23.5 | 125 | 24 |
| TBG415-120-M24-150 | 120 | 28 | M24 | 23.5 | 150 | 24 |
| TBG415-120-M30-50 | 120 | 28 | M30 | 26 | 50 | 30 |
| TBG415-120-M30-80 | 120 | 28 | M30 | 26 | 80 | 30 |
| TBG415-120-M30-100 | 120 | 28 | M30 | 26 | 100 | 30 |
| TBG415-120-M30-125 | 120 | 28 | M30 | 26 | 125 | 30 |
| TBG415-120-M30-150 | 120 | 28 | M30 | 26 | 150 | 30 |
