Leveling Feet
TBG-414
Female thread swivel leveling mounts
Female-thread swivel mounts with nickel-plated or stainless steel construction.
- Type SN
- Nickel-plated steel
- Type SS
- Stainless steel AISI 304
Technical Data

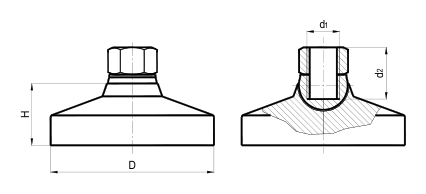

Dimensions and ordering information
| Item no. | D | H | d1 | d2 |
|---|---|---|---|---|
| TBG414-60-M12-* | 60 | 23 | M12 | 20 |
| TBG414-60-M16-* | 60 | 23 | M16 | 25 |
| TBG414-80-M16-* | 80 | 25 | M16 | 25 |
| TBG414-80-M18-* | 80 | 25 | M18 | 25 |
| TBG414-100-M18-* | 100 | 27 | M18 | 27 |
| TBG414-100-M20-* | 100 | 27 | M20 | 27 |
