Indexing Elements
TBG-229
Ball locking pins
For quick fixing, connecting, and locking where repeated assembly or disassembly is required.
- Type SZ
- SUS440C balls, 55 HRC; steel, zinc plated sleeve; stainless steel AISI 304 ring
- Type SS
- SUS440C balls, 55 HRC; stainless steel AISI 304 sleeve and ring
Technical Data

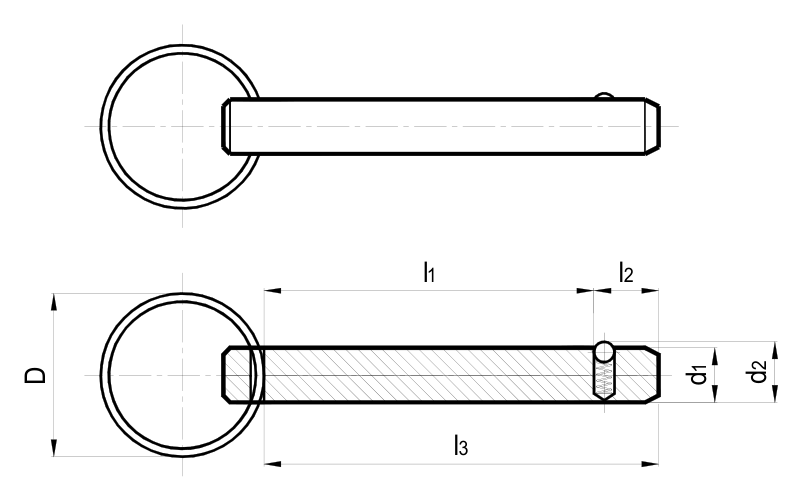

Dimensions and ordering information
| Item no. | l1 | d1 | D | d2 | l2 | l3 |
|---|---|---|---|---|---|---|
| TBG229-15-6-* | 15 | 6 | 23 | 6.5 | 7 | 22 |
| TBG229-20-6-* | 20 | 6 | 23 | 6.5 | 7 | 27 |
| TBG229-30-6-* | 30 | 6 | 23 | 6.5 | 7 | 37 |
| TBG229-40-6-* | 40 | 6 | 23 | 6.5 | 7 | 47 |
| TBG229-30-8-* | 30 | 8 | 28 | 8.8 | 8 | 38 |
| TBG229-40-8-* | 40 | 8 | 28 | 8.8 | 8 | 48 |
| TBG229-50-8-* | 50 | 8 | 28 | 8.8 | 8 | 58 |
