Indexing Elements
TBG-226
Nuts
Locking nuts for compatible indexing plungers.
- Type SZ
- Steel, zinc plated
- Type ST
- Steel, blackened
- Type SS
- Stainless steel AISI 303
Technical Data

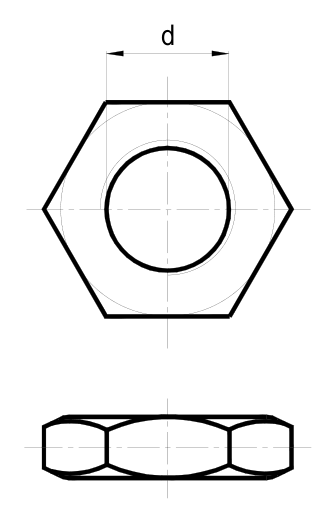

Dimensions and ordering information
| Item no. | d |
|---|---|
| TBG226-M6-* | M6 |
| TBG226-M6x0.75-* | M6x0.75 |
| TBG226-M8-* | M8 |
| TBG226-M8x1.0-* | M8x1.0 |
| TBG226-M10-* | M10 |
| TBG226-M10x1.0-* | M10x1.0 |
| TBG226-M12-* | M12 |
| TBG226-M12x1.5-* | M12x1.5 |
| TBG226-M16x1.5-* | M16x1.5 |
| TBG226-M18x1.5-* | M18x1.5 |
| TBG226-M20x1.5-* | M20x1.5 |
