Indexing Elements
TBG-224
Spring plungers with ball, slot
For use as stops, push-on and push-off elements, and ejectors.
- Type ST
- Blackened steel, ball hardened
- Type SS
- Stainless steel AISI 303, ball hardened
Technical Data

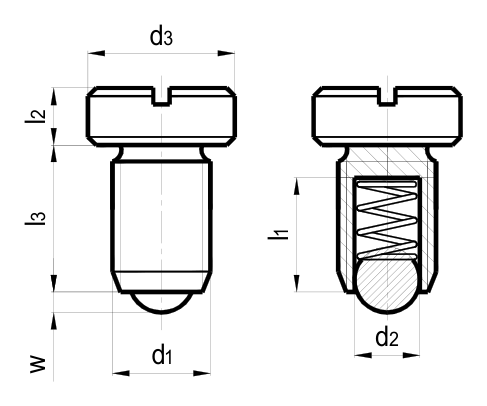

Dimensions and ordering information
| Item no. | d1 | d2 | d3 | l1 | l2 | l3 | w |
|---|---|---|---|---|---|---|---|
| TBG224-M4-* | M4 | 2.5 | 6 | 6.5 | 3 | 6 | 0.8 |
| TBG224-M5-* | M5 | 3 | 8 | 8.5 | 4 | 8 | 0.9 |
| TBG224-M6-* | M6 | 3.5 | 10 | 9 | 5 | 10 | 1 |
| TBG224-M8-* | M8 | 4.5 | 13 | 11 | 5.5 | 13 | 1.5 |
| TBG224-M10-* | M10 | 6 | 16 | 14 | 6 | 16 | 2 |
