Indexing Elements
TBG-223
Cam action indexing plungers
Cam action indexing plungers in blackened steel or stainless steel.
- Type ST
- Blackened steel
- Type SS
- Stainless steel AISI 303
- Plastic cover
- Polyamide (PA6), black, matte finish; not removable

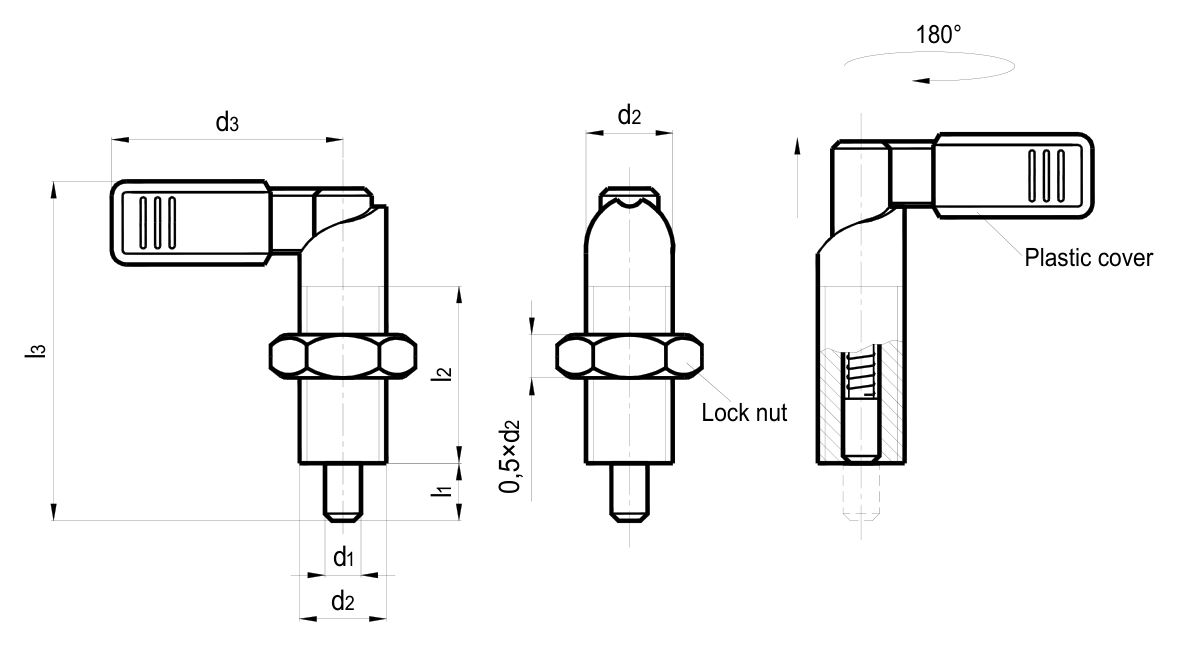

Technical Data
Dimensions and ordering information
| Item no. | d1 | d2 | d3 | l1 | l2+1.5 | l3 |
|---|---|---|---|---|---|---|
| TBG223-4-M10x1-* | 4 | M10x1 | 21 | 6 | 19 | 37.5 |
| TBG223-5-M10x1-* | 5 | M10x1 | 21 | 6 | 19 | 37.5 |
| TBG223-5-M12x1.5-* | 5 | M12x1.5 | 26 | 8 | 26 | 47 |
| TBG223-6-M10x1-* | 6 | M10x1 | 21 | 6 | 19 | 37.5 |
| TBG223-6-M12x1.5-* | 6 | M12x1.5 | 26 | 8 | 26 | 47 |
| TBG223-6-M16x1.5-* | 6 | M16x1.5 | 32 | 10 | 30 | 56 |
| TBG223-8-M16x1.5-* | 8 | M16x1.5 | 32 | 10 | 30 | 56 |
| TBG223-8-M20x1.5-* | 8 | M20x1.5 | 37 | 12 | 37 | 69 |
| TBG223-8-M20-* | 8 | M20 | 37 | 12 | 37 | 69 |
