Indexing Elements
TBG-222

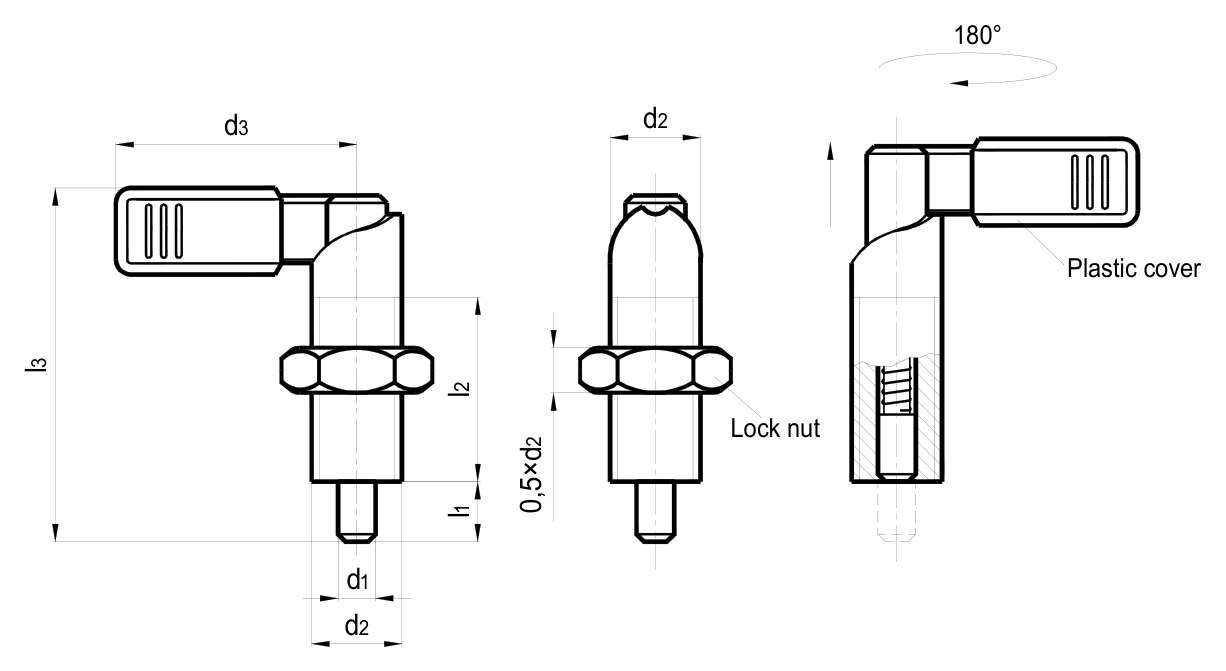

Cam action indexing plungers
Cam action indexing plungers in blackened steel or stainless steel.
- Type ST
- Blackened steel
- Type SS
- Stainless steel AISI 303
- Plastic cover
- Polyamide (PA6), black, matte finish; not removable
Technical Data
Dimensions and ordering information
| Item no. | d1 | d2 | d3 | l1 | l2 | l3 |
|---|---|---|---|---|---|---|
| TBG222-6-M16x1.5-* | 6 | M16x1.5 | 42 | 10 | 30 | 46 |
| TBG222-8-M16x1.5-* | 8 | M16x1.5 | 42 | 10 | 30 | 46 |
| TBG222-8-M20x1.5-* | 8 | M20x1.5 | 52 | 12 | 36 | 57 |
| TBG222-10-M16x1.5-* | 10 | M16x1.5 | 42 | 10 | 30 | 46 |
| TBG222-10-M20x1.5-* | 10 | M20x1.5 | 52 | 12 | 36 | 57 |
| TBG222-12-M20x1.5-* | 12 | M20x1.5 | 52 | 12 | 36 | 57 |
