Indexing Elements
TBG-219
Indexing plungers
Without rest in retracted position, competitive price, steel zinc plated or stainless steel.
- Type SZ
- Steel, zinc plated sleeve and knob; stainless steel AISI 303 pin
- Type SS
- Stainless steel AISI 303 sleeve, pin, and knob

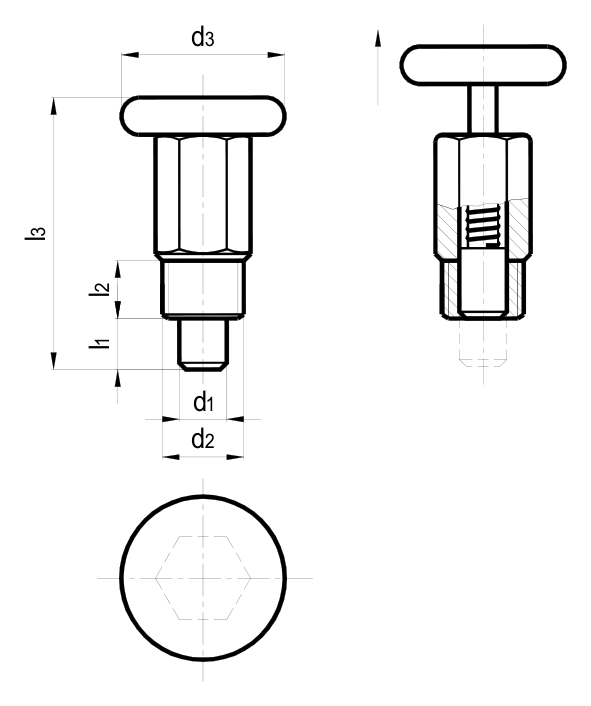

Technical Data
Dimensions and ordering information
| Item no. | d1 | d2 | d3 | l1 | l2 | l3 | SW |
|---|---|---|---|---|---|---|---|
| TBG219-5-M10x1-31-* | 5 | M10x1.0 | 18 | 7.5 | 4 | 31 | 10 |
| TBG219-6-M10x1-31-* | 6 | M10x1.0 | 18 | 7.5 | 4 | 31 | 10 |
| TBG219-6-M12x1.75-40-* | 6 | M12x1.75 | 24 | 7.5 | 8.5 | 40 | - |
| TBG219-7-M12x1.75-40-* | 7 | M12x1.75 | 24 | 7.5 | 8.5 | 40 | - |
| TBG219-8-M12x1.75-40-* | 8 | M12x1.75 | 24 | 7.5 | 8.5 | 40 | - |
