Indexing Elements
TBG-218
Indexing plungers
Without rest in retracted position, fine-pitch thread, blackened steel or stainless steel.
- Type ST
- Blackened steel, pin hardened
- Type SS
- Stainless steel AISI 303
- Knob
- Polyamide (PA6), black (standard color), red, green, or blue; not removable
Technical Data

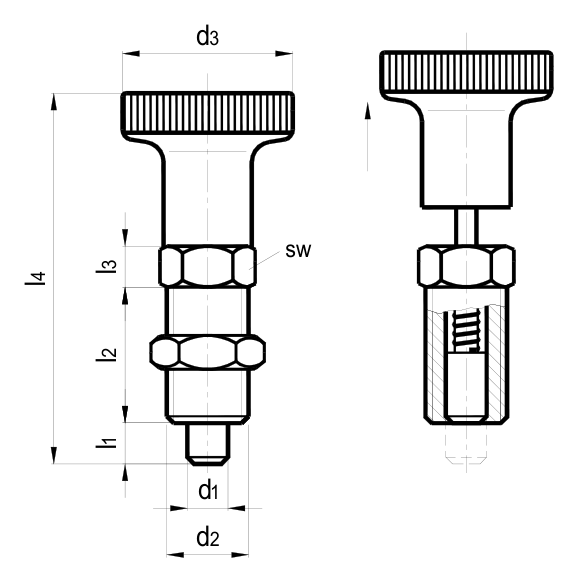

Dimensions and ordering information
| Item no. | d1 | d2 | d3 | l1 | l2 | l3 | l4 | SW |
|---|---|---|---|---|---|---|---|---|
| TBG218-5-M10x1-45-* | 5 | M10x1.0 | 21 | 6 | 17 | 5 | 45 | 12 |
| TBG218-6-M12x1.5-54-* | 6 | M12x1.5 | 25 | 6 | 20 | 6 | 54.5 | 14 |
| TBG218-8-M16x1.5-69-* | 8 | M16x1.5 | 31 | 8 | 26 | 8 | 69 | 19 |
| TBG218-10-M20x1.5-80-* | 10 | M20x1.5 | 31 | 10 | 33 | 10 | 80 | 22 |
| TBG218-11-M20x1.5-80-* | 11 | M20x1.5 | 31 | 10 | 33 | 10 | 80 | 22 |
| TBG218-12-M20x1.5-80-* | 12 | M20x1.5 | 31 | 10 | 33 | 10 | 80 | 22 |
| TBG218-12-M20x2-80-* | 12 | M20x2 | 31 | 10 | 33 | 10 | 80 | 22 |
