Indexing Elements
TBG-215
Indexing plungers
Lift ring, competitive price, steel zinc plated or stainless steel.
- Type SZ
- Steel, zinc plated sleeve; stainless steel AISI 303 pin; stainless steel AISI 301 lifting ring
- Type SS
- Stainless steel AISI 303 sleeve and pin; stainless steel AISI 301 lifting ring
Technical Data

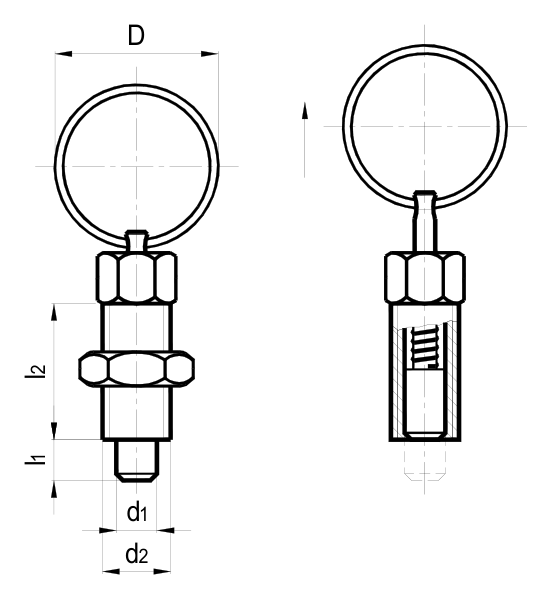

Dimensions and ordering information
| Item no. | d1 | d2 | D | l1 | l2 |
|---|---|---|---|---|---|
| TBG215-M6-12-* | 4 | M6 | 14 | 4 | 12 |
| TBG215-M8-16-* | 5 | M8 | 18 | 5 | 16 |
| TBG215-M10-20-* | 6 | M10 | 24 | 6 | 20 |
| TBG215-M12-24-* | 8 | M12 | 30 | 8 | 24 |
