Indexing Elements
TBG-214
Indexing plungers
Normal type with rest in retracted position, stainless steel.
- Sleeve
- Stainless steel AISI 303
- Pin
- Stainless steel AISI 303
- Knob
- Polyamide (PA6), black, matte finish; not removable
Technical Data

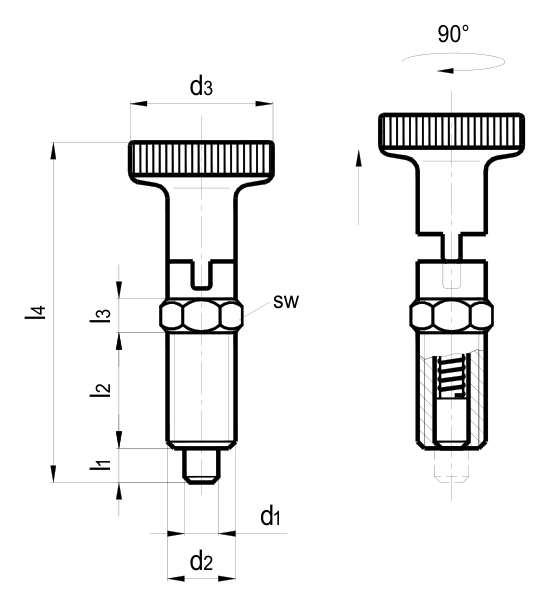

Dimensions and ordering information
| Item no. | d1 | d2 | d3 | l1 | l2 | l3 | l4 | SW |
|---|---|---|---|---|---|---|---|---|
| TBG214-M10x1-51 | 5 | M10x1.0 | 21 | 5 | 17 | 5 | 51 | 12 |
| TBG214-M12x1.5-61 | 6 | M12x1.5 | 25 | 6 | 20 | 6 | 61 | 14 |
| TBG214-M16x1.5-75 | 8 | M16x1.5 | 31 | 8 | 26 | 8 | 75.5 | 19 |
| TBG214-M20x1.5-91 | 10 | M20x1.5 | 31 | 10 | 33 | 10 | 91 | 22 |
