Indexing Elements
TBG-213
Indexing plungers
Normal type without rest in retracted position, steel zinc plated or stainless steel.
- Type SZ
- Steel, zinc plated sleeve; stainless steel AISI 303 pin
- Type SS
- Stainless steel AISI 303 sleeve and pin
- Knob
- Polyamide (PA6), black, matte finish; not removable
Technical Data

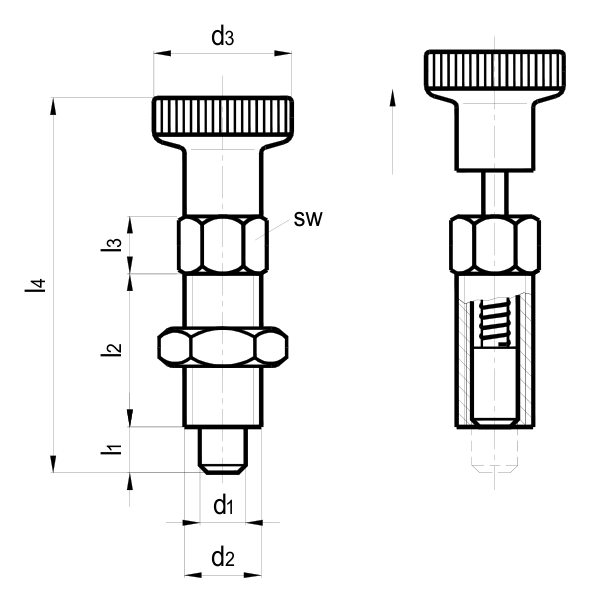

Dimensions and ordering information
| Item no. | d1 | d2 | d3 | l1 | l2 | l3 | l4 | SW |
|---|---|---|---|---|---|---|---|---|
| TBG213-M6-31-* | 4 | M6 | 12 | 4 | 12 | 4.5 | 31 | 6 |
| TBG213-M8-40-* | 5 | M8 | 16 | 5 | 16 | 6 | 40 | 8 |
| TBG213-M10-49-* | 6 | M10 | 18 | 6 | 20 | 7.5 | 49 | 10 |
| TBG213-M12-59-* | 8 | M12 | 21 | 8 | 24 | 9 | 59 | 12 |
| TBG213-M6x0.75-31-* | 3 | M6x0.75 | 12 | 4 | 12 | 4.5 | 31 | 6 |
| TBG213-M8x1-40-* | 4 | M8x1.0 | 16 | 5 | 16 | 6 | 40 | 8 |
| TBG213-M10x1-49-* | 5 | M10x1.0 | 18 | 6 | 20 | 7.5 | 49 | 10 |
| TBG213-M12x1.5-59-* | 6 | M12x1.5 | 21 | 8 | 24 | 9 | 59 | 12 |
