TBG-212
Indexing plungers
With fixing plate, suited for thin metal plate, with or without rest in retracted position.
- Fixing plate
- Steel, zinc plated, with two countersunk holes
- Pin
- Steel, blackened
- Knob
- Polyamide (PA6), black, matte finish; not removable
Technical Data

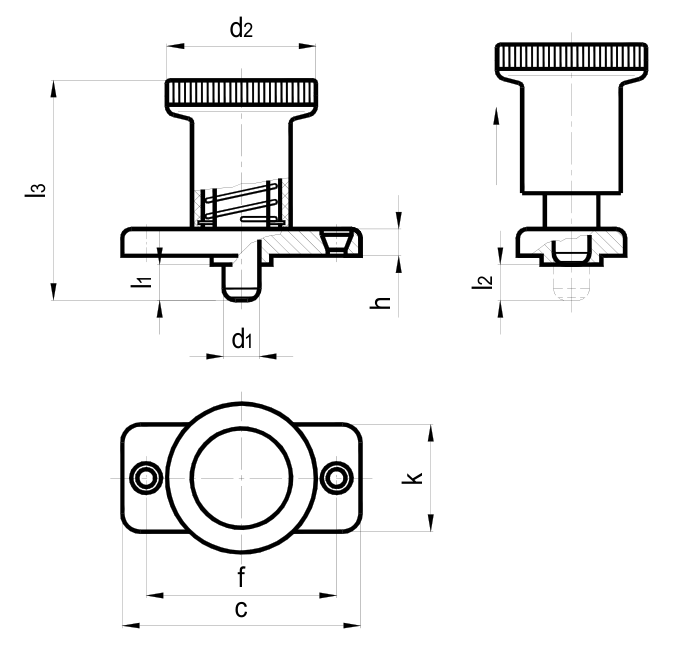

Dimensions and ordering information
| Item no. | d1 | d2 | l1 | l2 | l3 | h | c | k | f | Rest position |
|---|---|---|---|---|---|---|---|---|---|---|
| TBG212-6-37-NL | 6 | 25 | 6 | 0 | 37 | 4.5 | 40 | 18 | 30 | Without |
| TBG212-6-45-NL | 6 | 25 | 14 | 8 | 45 | 4.5 | 40 | 18 | 30 | Without |
| TBG212-8-44-NL | 8 | 31 | 8 | 0 | 44 | 5.5 | 46 | 20 | 34 | Without |
| TBG212-8-54-NL | 8 | 31 | 18 | 10 | 54 | 5.5 | 46 | 20 | 34 | Without |
| TBG212-6-37-LO | 6 | 25 | 6 | 0 | 37 | 4.5 | 40 | 18 | 30 | With |
| TBG212-6-45-LO | 6 | 25 | 14 | 8 | 45 | 4.5 | 40 | 18 | 30 | With |
| TBG212-8-44-LO | 8 | 31 | 8 | 0 | 44 | 5.5 | 46 | 20 | 34 | With |
| TBG212-8-54-LO | 8 | 31 | 18 | 10 | 54 | 5.5 | 46 | 20 | 34 | With |
