TBG-211
Mini indexing plungers
Mini type, suited for thin metal plate, with or without rest in retracted position.
- Metal sleeve
- Steel, zinc plated
- Pin
- Stainless steel AISI 303
- Knob
- Polyamide (PA6), black, matte finish; not removable
Technical Data
Dimensions and ordering information

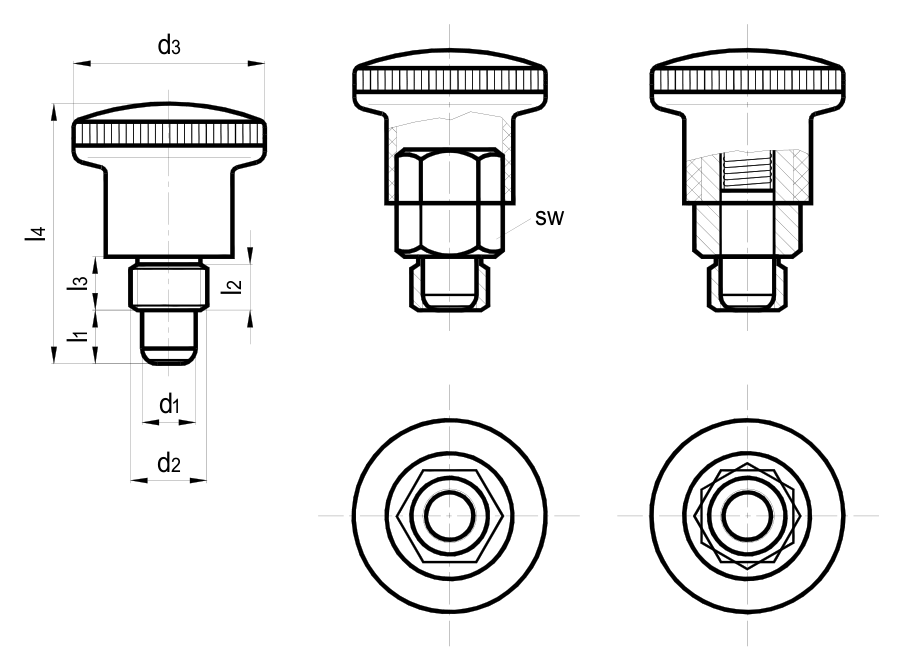

| Item no. | d1 | d2 | d3 | l1 min. | l2 min. | l3 | l4 | SW | Rest position |
|---|---|---|---|---|---|---|---|---|---|
| TBG211-M8x0.75-26-4-NL | 4 | M8x0.75 | 21 | 5 | 3.5 | 5 | 26.5 | 10 | Without |
| TBG211-M8x0.75-26-5-NL | 5 | M8x0.75 | 21 | 5 | 3.5 | 5 | 26.5 | 10 | Without |
| TBG211-M10x1-34-6-NL | 6 | M10x1 | 25 | 7 | 4.5 | 7 | 34 | 12 | Without |
| TBG211-M10x1-34-7-NL | 7 | M10x1 | 25 | 7 | 4.5 | 7 | 34 | 12 | Without |
| TBG211-M8x0.75-26-4-LO | 4 | M8x0.75 | 21 | 5 | 3.5 | 5 | 26.5 | 10 | With |
| TBG211-M8x0.75-26-5-LO | 5 | M8x0.75 | 21 | 5 | 3.5 | 5 | 26.5 | 10 | With |
| TBG211-M10x1-34-6-LO | 6 | M10x1 | 25 | 7 | 4.5 | 7 | 34 | 12 | With |
| TBG211-M10x1-34-7-LO | 7 | M10x1 | 25 | 7 | 4.5 | 7 | 34 | 12 | With |
