Indexing Elements
TBG-210
Indexing plungers
Compact type, suited for thin metal plate, with or without rest in retracted position.
- Type ST
- Blackened steel, pin hardened
- Type SS
- Stainless steel AISI 303
- Knob
- Polyamide (PA6), black (standard color), red, green, or blue; not removable
Technical Data

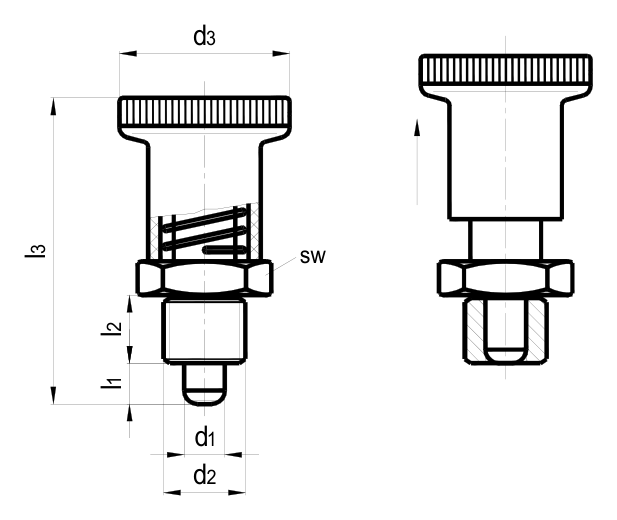

Dimensions and ordering information
| Item no. | d1 | d2 | d3 | l1 | l2 | l3 | SW | Rest position |
|---|---|---|---|---|---|---|---|---|
| TBG210-M12x1.5-45-NL-* | 6 | M12x1.5 | 25 | 6 | 10 | 45 | 17 | Without |
| TBG210-M16x1.5-54-NL-* | 8 | M16x1.5 | 31 | 8 | 12 | 54 | 19 | Without |
| TBG210-M12x1.5-45-LO-* | 6 | M12x1.5 | 25 | 6 | 10 | 45 | 17 | With |
| TBG210-M16x1.5-54-LO-* | 8 | M16x1.5 | 31 | 8 | 12 | 54 | 19 | With |
